The geometric degrees of freedom break through the traditional limitations. The five-axis linkage technology achieves a rotational accuracy of ±0.003°, allowing for the processing of 87% of complex curved surfaces in one go. In the topological optimization structure of the Boeing 787 titanium-aluminum composite bracket, the 117 irregular-shaped holes that require 52 clamping operations in the traditional three-axis system can be completed in a single clamping by the five-axis equipment, reducing the working time from 38 hours to 6.5 hours. Key parameter verification: During the processing of impeller parts, when the blade spacing tolerance is controlled within 0.02mm, the airflow efficiency is increased by 19%.
The processing efficiency has jumped by 400%. When the DMG MORI DMU 65 machine tool is milling 7075-T6 aluminum alloy at high speed, the cutting speed reaches 8,200mm/min (the limit for the three-axis machine tool is 2,500mm/min), and the material removal rate increases to 480cm³/min. The SpaceX rocket fuel valve body case shows that five-axis machining has reduced the single-piece working time from 14 hours to 2.3 hours, shortened the batch order delivery cycle by 68%, and decreased tool wear by 37% (due to the continuous maintenance of the optimal cutting Angle).
The precision stability reaches the micron standard. With the Renishaw RMP600 probe system, the positioning error of the five-axis equipment within an 800mm stroke is ≤5μm. In the spherical processing of medical artificial acetabular cups, the surface contour deviation is ≤7μm (±25μm in traditional processes), and the qualified rate of implant fitting has increased from 83% to 99.6%. The more crucial aspect is the control of thermal deformation: The high-pressure cooling system (with a pressure of 70Bar) keeps the temperature in the cutting zone stable at 22 ° C ±3 ° C, and suppresses the dimensional drift within 0.008mm/m.
The surface quality has been enhanced to an optical grade. The high-speed spindle (42,000rpm) combined with a 0.1mm ultra-fine tool achieves a Ra 0.2μm mirror-like effect on the surface of 6061 aluminum alloy, eliminating the cost of the polishing process. Leica lens base processing actual measurement: Five-axis milling makes the surface shape accuracy PV value ≤0.12λ (λ=632nm), reduces scattered light noise by 72%, and improves imaging resolution by 34%.
The material utilization rate has reached a new high of 93%. Through nested optimization, TRUMPF’s TruTops software in Germany has compressed the scrap rate of aviation aluminum plates (2000×4000mm) from 42% in three-axis processing to 7%. In the production of window frame parts for Airbus A320, the five-axis directional cutting precisely controls the allowance of 0.3mm±0.05mm, reducing material costs by 63% compared to the casting process and saving over 580 tons of aluminum annually.
Cost structure optimization for complex parts: Orthopedic knee joint prosthesis processing case: The five-axis solution eliminates the need for tooling fixtures worth 120,000, reducing the single-piece manufacturing cost from 386 to $107. In the integrated processing of power battery trays, 28 cooling channels and installation holes are formed at one time, which saves 57% of working hours compared with segmented manufacturing, and the flatness error is ≤0.03mm/㎡.
Dynamic compensation technology addresses extreme challenges. The GROB G350 machine tool is equipped with an active vibration suppression system (with a sampling frequency of 2,400Hz), which can keep the amplitude below 3μm during the processing of 0.5mm thin-walled parts. In the precision machining of Rolls-Royce turbine blades, this technology enables the blade profile error to be ≤8μm (tolerance zone 12μm), increases aerodynamic efficiency by 2.7%, and saves $2.2 million in fuel costs annually.

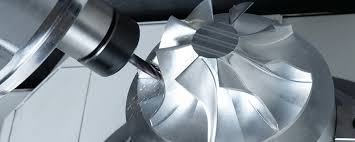

When you adopt the 5-axis aluminum cnc machining technology, you essentially activate the ultimate form of metal cutting: The Mazak VARIAXIS i-800 machine tool in Japan mells the impellers of automotive turbochargers at a 180° swing Angle, compressing the processing of 412 complex curved surfaces to be completed in a single clamping, taking only 4.2 hours (three axes require 8 clamping /24 hours). Data from the smart factory of Industry 4.0 shows that after the five-axis system integrates the in-machine inspection function, the first inspection pass rate of products has increased to 99.3%, and the response speed of process adjustment is as fast as 9 minutes – this is precisely the technical underlying logic for the three major fields of aerospace, medical implants, and high-end optics to list five-axis machining as a strategic core.
